e-Clean
implant system
system of external connection with platforms NP, RP and WP, designed to offer universal prosthetic compatibility, simple clinical management and extensive restorative versatility.
Connection
PLATFORM | NARROW - NP | REGULAR - RP | WIDE- WP |
PLATFORM DIAMETER [P] | P3.5 | P4.1 | P5.1 |
HEXAGONAL INTERFACE [E] | 2.4 mm | 2.7 mm | 3.4 mm |
HEXAGON HEIGHT [H] | 0.7 mm | 0.7 mm | 0.7 mm |
INTERNAL THREAD | M 1.6 | M 2.0 | M 2.5 |
NOMENCLATURE | 055-HXE | 134-HXE | 054-HXE |
Features and protocol
Tapered I
Platforms available:
Recommended for:
- Type III–IV bone
- Atraumatic extractions and elevations
- Need for high primary stability
- Immediate loading and demanding aesthetic zones
Surgery protocol
Tapered I
Instruments included:
- Lindemann strawberry
- Pilot cutters
- EXTENSIONS
- ONEQ Straight Mills
- COUNTERSINK ONEQ strawberries
- parallel pins
- depth probe
- I-Clean Drivers (No-Mount, Rack and Hex)
- ratchet

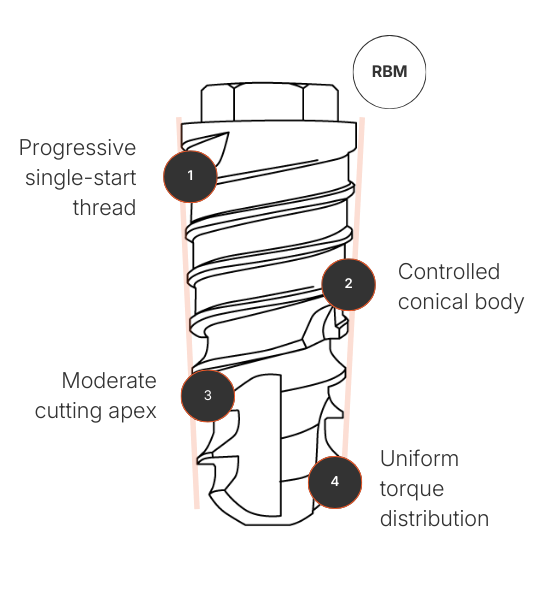

Tapered II
Platforms available:
Recommended for:
- Type II–III bone
- Narrow pits or delicate bone biotype
- Cases where torque control is required
- Early load with low compression
Surgery protocol
Tapered II
Instruments included:
- Lindemann strawberry
- Pilot cutters
- EXTENSIONS
- ONEQ Straight Mills
- COUNTERSINK ONEQ strawberries
- parallel pins
- depth probe
- I-Clean Drivers (No-Mount, Rack and Hex)
- ratchet

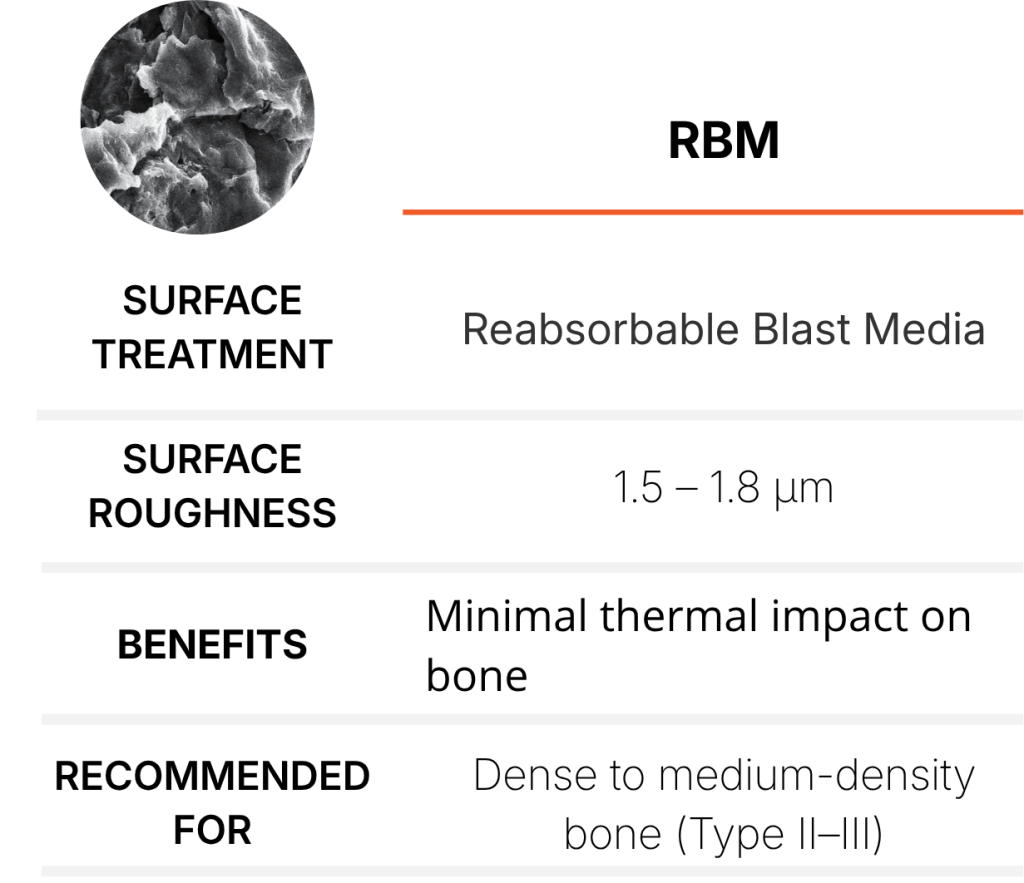

Surface treatment
